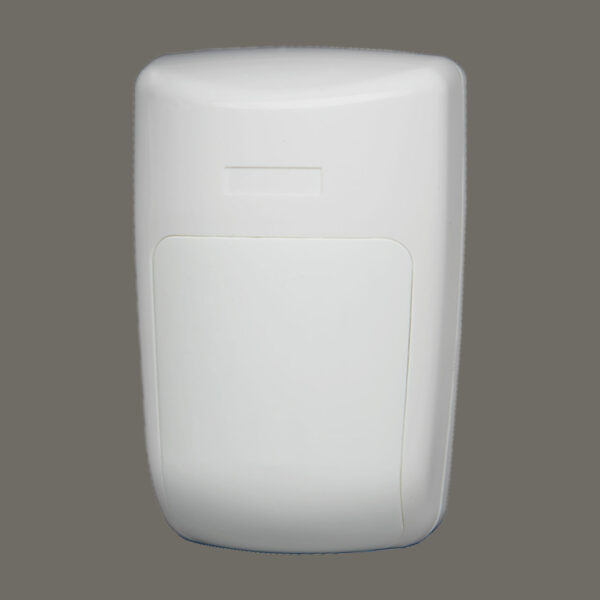

The IQ Motion-S is a reliable and cost-effective motion sensor that combines strong performance with advanced protection. Built with Think Protection's encrypted S-Line technology, it securely communicates with your IQ Panel while remaining compatible with legacy 319.5 MHz systems.

Designed for flexibility, the IQ Motion-S can be mounted on flat walls or in corners, and it’s pet-friendly—ignoring animals up to 40 lbs to reduce false alarms. Whether you're home or away, you’ll know your space is protected with smart, dependable motion detection.

Key Features:

• Encrypted S-Line Technology: Secures communication with your IQ Panel while remaining compatible with legacy 319.5 MHz systems.

• Wide Coverage: Monitors large open areas with a detection range of up to 30 feet.

• Smart Automation Ready: Set custom rules like “Turn on lights when motion is detected” or “Trigger alarm on unauthorized entry.”

• Pet-Immune: Filters out movement from pets up to 40 lbs, reducing false alarms.

Technical Specifications:

• Code Outputs: Pairing, tamper alerts, tamper restore, motion detection, alarm restore, supervision, low battery

• Transmitter Frequency: 319.5 MHz ± 15 kHz

• Bandwidth: 24 kHz

• Modulation Type: ASK-OOK

• RF Output Power: 91.1 dBμV ± 5% @ 3 meters

• Detection Range: 30 ft (9.1 m) x 40 ft (12.2 m)

• Maximum Sensing Angle: 80° horizontal

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -40°C to 80°C

• Humidity Tolerance: 5% to 95% non-condensing
